ROSSLARE AC-825IP Networked Controller with ME-1515 Enclosure

Introduction

The AC-825IP is a 6-door networked access controller suitable for a medium scale to high-scale security system. The controller comes with one onboard expansion slot to connect an additional 6 readers or a maximum of 12 expansion boards via OSDP V2 including secure channel protocol. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by Rosslare’s AxTraxNG™ or AxTraxPro™ Access Control Management Software – the system provides a modular and expandable solution for commercial and institutional needs.

General Description

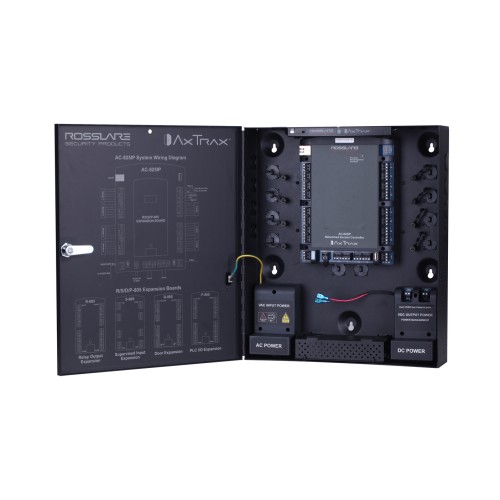

The AC-825IP access control unit supports up to 6 doors (In/Out) or up to 12 supported expansions1. Four additional auxiliary inputs and 2 auxiliary outputs are also on board. The AC-825IP has TCP/IP communication to the AxTraxNG or AxTraxPro server and has a OSDP bus for expansion and/or reader connectivity. In addition, the AC-825IP and its expansions can be placed in a ME-1515 lockable metal enclosure.

Main Features

• Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
• Onboard TCP/IP networking to the AxTraxNG or AxTraxPro server, bidirectional push communication for enhanced data transmission speed and reliability
• Supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP Secured Channel Protocol to let the AC-825IP controller connect to any peripheral device that supports OSDP1
• A ES 256-bit symmetric data encryption to the AxTraxPro server to make sure the data is secure
• 4 auxiliary inputs and 2 auxiliary outputs
• One onboard expansion slot and an additional 12 expansion boards via OSDP V2 including secure channel protocol (R/S/D/P-805)
  • R-805 – 16 outputs
  • S-805 – 16 inputs
  • D-805 – 4-door expansion
  • P-805 – 16 inputs and 8 outputs
• AC-825IP can be installed in a ME-1515 metal enclosure
  • Holds 2 expansion boards or an AC-825IP board
  • C14 power plug and supports Pull-Safe™ cable locks for secured wiring
  • Built-in tamper and light bar
  • DIN rail mounting option for space saving with no additional enclosure needed
  • Power management board indicates battery and power status

Specifications

ELECTRICAL SPECIFICATIONS

• Enclosure AC-825IP : ME-1515
• Enclosure SMPS Input : 90 to 265 VAC, 50–60 Hz, Switch mode power management board Output: 12 VDC, 4 A
• PCBA Input Power : 12 VDC, 2 A, regulated power management board
• Battery Charger : 12 V sealed lead acid (SLA) up to 7 Ah

OPERATIONAL SPECIFICATIONS

• Relays : 5-A, Form-C 6
• Inputs : 12
• Readers : 6
• Expansion Port : 1
• Connectivity : TCP/IP, OSDP, Wiegand

OPERATIONAL SPECIFICATIONS

• Capacity : Up to 100,000 users
• History Event Log Size : Up to 500,000 entries
• Expansion : One onboard expansion slot and an additional 12 expansion boards via OSDP V2 (R/S/D/P-805)
• Time Zones and Groups : 256 multi-segment time zones, 64 holidays – each holiday can be of multiple days, Practically unlimited access groups
• Special Features with AxTraxNG/AxTraxPro : Interlock, first-person delay, auto-relock, scheduled outputs operation, 4 programmable site codes, extended unlocked time, fully interconnectedness, car parking management, antipassback (per reader, between readers)
• Secured Communication : OSDP V2 including secure channel AES 256-bit symmetric data encryption

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature : Range -5°C to 50°C (23°F to 122°F)
• Storage Temperature : Range -25°C to 50°C (-13°F to 122°F)
• Operating Humidity : 0 to 85% (non-condensing)

System Components AC-825IP is compatible with a range of Rosslare accessories, including a diverse selection of readers and accessories; four expansion boards

Product Warranty 2-year limited product warranty
