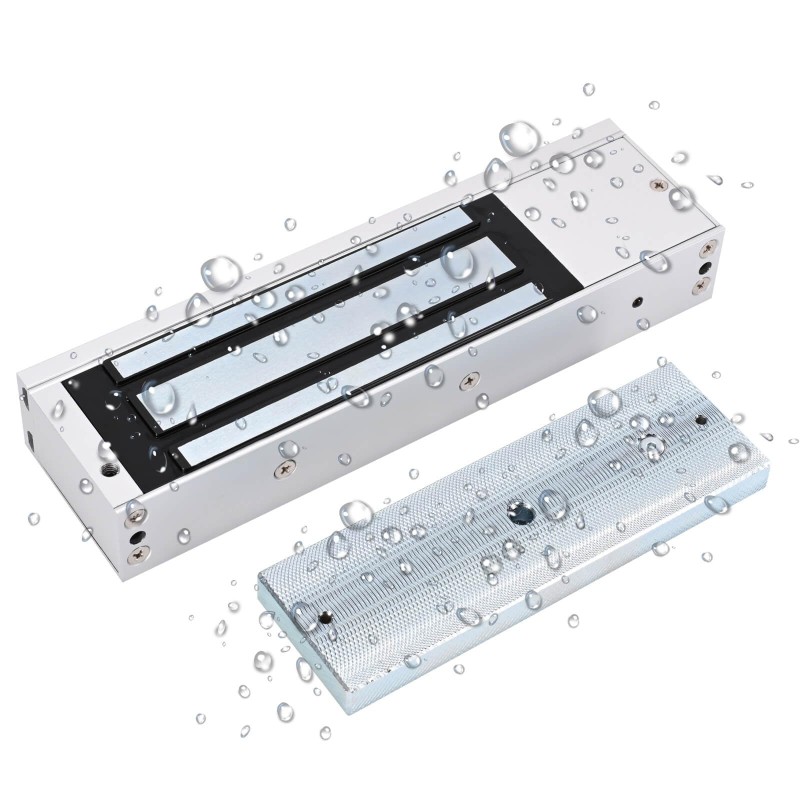

VIANS Stainless Steel Waterproof 600lbs EM Lock - SV-280ASW
- Brand: VIANS
- Product Code: SV-280ASW
- Availability: In Stock
Features
- Fail safe type, made by full stainless steel material and suitable for outdoor use.
- Suitable for exit door, out-swing door and in-swing door.
- Door position detection output to detect if it is locked correctly.
- Automatic demagnetizer function when power is off.
SPECIFICATIONS
|
Product Name |
280KG 600LBS Stainless Steel Waterproof Gate Lock |
|
Product Model |
SV-280ASW |
|
Lock Size |
210L*42W*28.5H(mm) |
|
Armature Plate Dimension |
185L*38W*12H(mm) |
|
Holding Force |
280KG(600LBS) |
|
Input Voltage |
DC12V or DC24V ±15% |
|
Lock Sensor |
N.C. Output (0.25A/30VDC) |
|
Current |
12V/460mA(±5%); 24V/235mA(±5%) |
|
Security Type |
Fail Safe |
|
Waterproof Level |
IP67 |
|
Application |
Swing Door |
|
Surface Temp |
≤+20℃ |
|
Operating Temp |
-20℃~+55℃(-4—131°F) |
|
Humidity |
0~90%(non-condensing) |
|
Certificate |
CE, RoHS, FCC |
|
Unit Weight |
2.3KG |
