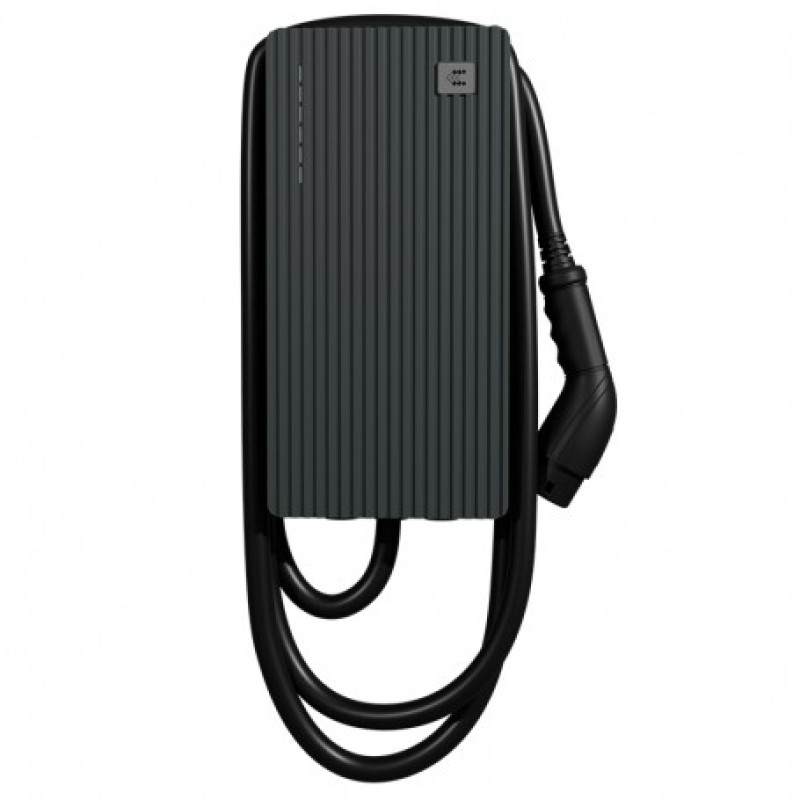

TELTONIKA 22kW 3P EV Charger With Type 2 Cable
- Brand: TELTONIKA
- Product Code: EVC121
- Availability: In Stock
TELTOCHARGE
An EV charger that is highly customizable to fit the design and specifications of every place.
Features
-
Power : 22 kW
-
Connectivity : Wifi/Bluetooth, Wifi/Bluetooth/GSM
-
Front plate colors :
-
Winter white
-
Granite brown
-
Burgundy
-
Slate grey
-
Accoya wood
-
- Output : Type 2 Cable / 5 m
Specifications
Main features
- DIMENSIONS : Width 170mm; Height 341mm; Depth 94mm
- INTERCHANGABLE FRONT PLATES : Users have the ability to change the front plates by themselves
- FRONT PLATE OPTIONS : Slate Grey; Accoya Wood; Burgundy; Granite Brown; Winter White
- OUTPUT : Type 2 cable
- CONNECTIVITY TYPES
- APP - Bluethooth
- OCPP 1.6 - Ethernet; Wifi; GSM (optional)
- RFID (NFC); Modbus/RS485
Detailed specifications
- CONNECTION POINT : Tethered cable with Type 2 outlet (IEC 62196-2)
- CERTIFICATIONS
- CE & UKCA compliant
- Codes and standards - EMC: 2014/53/EU, IEC 61851-21
- Environment - 2011/65/EU, REACH, RoHS
- EUR1
- WARRANTY :36 months
- APPLICATION CONNECTIVITY : Bluetooth (LE)
- CHARGER CONNECTIVITY
- WiFi 2.4 Ghz b/g/n connection
- Local managment via APP
- NFC reader
- OCPP 1.6
- Ethernet (RJ45)
- 4G/LTE (CAT1), 3G, 2G (optional)
- PROTECTION
- Output voltage and current monitoring
- Temperature monitoring
- Input voltage monitoring
- Residual current monitoring (30mA AC / 6 mA DC) Standard: IEC62752:2016
- RDC-DD (6 mA DC) Standard: IEC62955:2018 (CT Clamps Version)
- Ground fault detection
- Degree of protection - IP56
- Impact resistant - IK10
- Fire class - UL94
- TETHERED CABLE
- Flame retardant rating - UL-94V-0
- Operating temperature - -30ºC - +50ºC
- Plug and play count - 10000
- Cable length - 5 m
- IP rating - IP54
- Socket - Type 2
- CHARGING SPECIFICATION
- 22kW
- Up to 7.36kW at 32A 1 phase
- Up to 22kW at 32A 3 phase
- Dynamic configuration
- NETWORK TYPE : T/N and IT/TT
- VOLTAGE : Single phase: 230 V (+-10%); Three phase: 400 V (+-10%)
- MAIN FREQUENCY : 50/60 Hz
- OPERATING SPECIFICATIONS
- Humidity to 95% RH non condensing, -30ºC - +50ºC
- Storage temperature -30ºC - +50ºC
- TEMPERATURE SENSORS : In all main components
- LED LIGHTS : LEDs showing the status of the charger
- BUILT-IN ENERGY METER : Statistical data tracking
- LOAD BALANCING
- Statistic load balancing
- Dynamic load balancing, options to enable it:
- Smart Energy meter (not included into the package)
- CT clamps (included as standard); (CT Clamps version)
- Phase balancing
- Solar energy support
- Dynamic load management
