COMUNELLO Fort 1000 24VHP For Sliding Gate Full KIT - 1000kg
COMUNELLO Fort 1000 24VHP For Sliding Gate Full KIT - 1000kg  COMUNELLO Fort 1000 24VHP For Sliding Gate Full KIT - 1000kg

COMUNELLO Fort 1000 24VHP For Sliding Gate Full KIT - 1000kg



Fort 1000 24V-HP

In residential and industrial contexts actuators from the Fort series provide an attractive and intelligent solution.
The on-board control panel provides access to a vast range of features including obstacle detection and programmable operation times.
The receiver is built in to the control panel. The motor support bushings guarantee silent movement even under full load.

Features

  • Performance : Mechanical performance and lubrication tested and guaranteed even at low temperatures.
  • Speed : Nominal speed and slowdown adjustable up to 0.28 m / s.
  • Obstacle detection : Obstacle detection by current absorption or encoder.
  • Intensive use : 24vdc version for intensive use.

SPECIFICATIONS

Voltage 230 VAC 50 Hz
Operating power supply 24 VDC
Power consumption 150 W
Max. absorption 6,2 A
Internal gear Bronze
Max. thrust 900 N
Duty cycle Intensive use
Protection degree (IP) IP44
Insulation class 2
Working temperature -20°C / +50°C
Max. gate weight 1000 Kg
Rack module M4
Speed 0,21 m/s
Weight 13 Kg

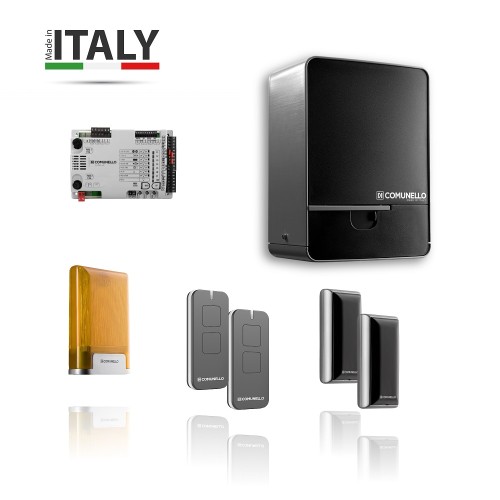

Kit Contains :

  • Motor
  • Ac-220 (Base for motor)
  • Victor 2ch Remote Control
  • Dart (Photocells)
  • Swift Y 24V
  • Tab AC-40
