COMUNELLO HYRON 300 24V FM HP Full KIT - 300kg
- Brand: FRATELLI COMUNELLO
- Product Code: GKHN30MHLF900A
- Availability: In Stock
HYRON 300 24V FM HP
Electromechanical telescopic rod actuator for swing gates.
Self-lubricating gears in aluminum and bronze which guarantee high resistance to wear.
The stainless steel stem and the die-cast aluminum front fixing guarantee reliability and resistance over time.
Axial motor screwed to the chassis.
Removable lower terminal block with oversized cable gland.
Version with electronic limit switches to easily adjust the stroke of the leaf.
SPECIFICATIONS
| Operating power supply | 24V | |||
| Power consumption | 110 W | |||
| Absorption | 5 A | |||
| Electric motor | Permanent magnets | |||
| Max. thrust | 2000 N | |||
| Nominal thrust | 600 N | |||
| Stroke | 400 mm | |||
| No-load speed | 22 mm/s | |||
| Opening time 90° | up to 11,5s | |||
| Duty cycle | Intensive use | |||
| Protection rating | IP 44 | |||
| Insulation class | II | |||
| Operating temp. | -20°C / +50°C | |||
| Max gate weight | 300 Kg | |||
| Mass | 7.8 Kg | |||

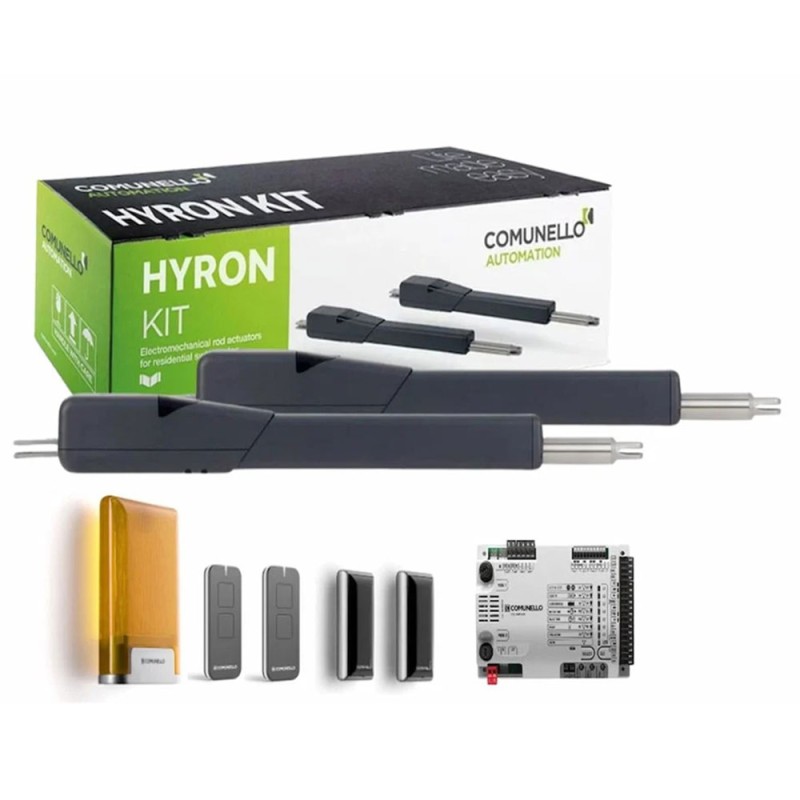

Kit Contains :
- 2 HYRON
- 1 QUAD 24V HP(With receiver GQUADHP2L0G00)
- 2 VICTOR(2 Channels rolling code)
- 1 PAIR PHOTOCELLS
- 1 SWIFT(Flashing beacon)
- AC-40(Signage table)
