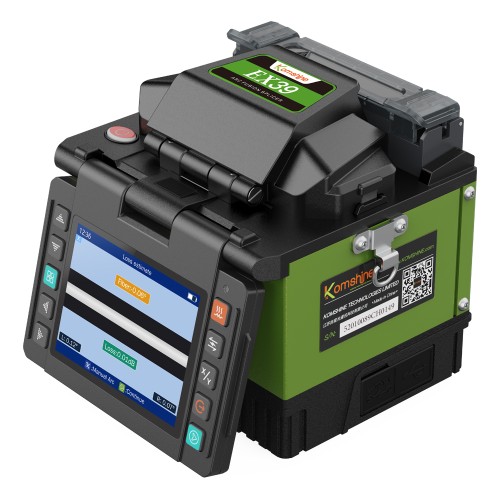

EX39 Mini Handheld FTTx Fusion Splicer
Features
- Efficient, versatile, lightweight & portable
- Working platform design for aerial work
- Special 3-in-1fiber holde
- Electrode life around 5000 times(Replaceable)
- Automatic splicing & automatic heating
- Innovatively no need tools to replace electrodes
- Support 120 times of splicing + heating when fully charged
- 3 years warranty
Specifications
Splice Method : Active Clad-Alignment
Applicable Fibers : SingleMode(ITU-T G.652&G.657) / MultiMode(ITU-T G.651)
Compatible Fiber/Cable : 0.25~3.0 mm / indoor flat cable
Fiber Holder : Replaceable
Fiber Diameter : Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length : 8~16 mm
Splice mode : Max 128 modes
Typical Splice Loss : SingleMode: 0.03dB / MultiMode: 0.01dB / G.657: 0.03dB
Return Loss : >>60dB
Splicing Time : SingleMod Quick mode : 8 sec / SingleMode Average: 10 Sec
Estimated Splice Loss : Available
Heating Time : Quick mode 18 sec.(SingleMode G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs: Max 32 modes
Battery : 3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge
Electrode Life : 5000 arcs （replaceable)
Auto-start : Splice / Heating
Automatic ARC Identification : Automatic arc calibration by air pressure and temperature
Results Storage : The last 10,000 splice records and 2,000 result images
Tension Test : 1.96~2.25N
Operating Condition : Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition : 0~95% relative humidity, -20~60°C
Display : 3.5” color high resolution (800 x 480) display
Fiber Magnification : X, Y, XY, X/Y : 320X Magnification
Power Supply : AC 100-240V, DC 9-14V
Terminal : USB2.0
Weight : 1.06kg without battery / 1.35kg with battery
Size : 130H x 113W x 126D mm
