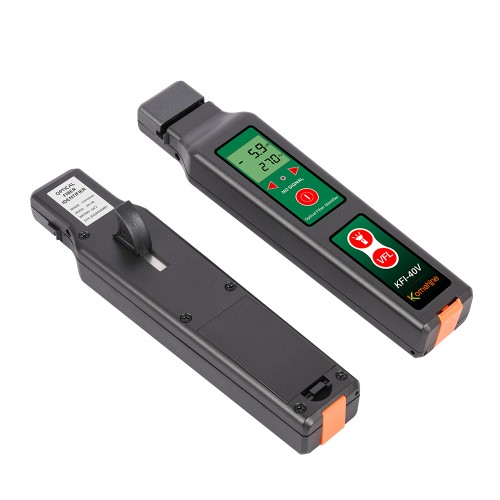

Komshine Optical Fiber Identifier KFI-40V
- Brand: Komshine
- Product Code: KFI-40V
- Availability: Pre-Order Please Call
Optical Fiber Identifier KFI-40V
Product Characteristics
- Suitable for 0.25/0.9/2.0/3.0mm fibers.
- LED backlight display, suitable for various environments without auxiliary lighting.
- Test sensitivity: -40dBm to 10 dBm.
- Easy to carry, no need to replace the chucks.
- Configure VFL function, 2.5mm universal
- Be equipped with LED light, more convenient to check the fbers in the dark
- Test distance up to 5km, high stability
- Strong light source, strong penetrating power
Specifications
Wavelength Recognition Range : 800nm to 1700nm
Signal Recognition Type : CW, 270Hz ±5%, 1kHz 5%, 2kHz 5%
Detector Type : 1mm InGaAs 2 pcs
Adapted fber type : Universal Holder for 0.25(Bare Fiber), 0.9, 2.0, 3.0 Cable
Signal Direction : Left & Right LED
Optical Power Reading Range : 40 dBm to 10 dBm
Signal Frequency Range : 270Hz,1kHz,2kHz
Power Type : AA*2
Operating Temperature Range : -10°C to 60°C
Storage Temperature Range : 25°C to 70°C
Dimension : 219mm*45mm*28mm
Weight : 235g
VFL Function
Power range : 10mW
Testing distance : 5-8km
Wavelength : 650nm
Laser type : LD
LED light : Support
