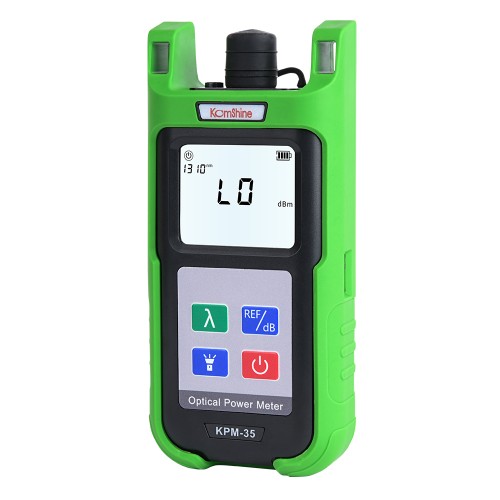

Komshine High Precision Optical Power Meter KPM-35
- Brand: Komshine
- Product Code: KPM-35
- Availability: Pre-Order Please Call
High Precision Optical Power Meter KPM-35. Compatible with KLS35-S / KLS35-MS / KLS35-M
Features
- 2.5mm universal interface ±0.2 dB accuracy
- Wavelengths 850-1625nm
- 0.01 dB Resolution
- Measurement Range -70~ +10dBm
- Manual calibration
- Waterproof keys suitable for various outdoor environments
- Silicone jacket, anti-drop 2m
- Equipped with LED light, not afraid of the dark
Wavelength(nm) range : 800 ~ 1700 (nm)
Probe type : InGaAs
Measurement range (dBm) : -70 ~+ 10dBm / -50 ~+ 26dBm
Accuracy : ± 0.2dB
Standart Wavelengths : 850, 980, 1300, 1310, 1490, 1550, 1625 (nm)
Dispalay Resolution (dB) : 0.01dB
Operating temperature : -10 ~ +60 ( °C )
Storage temperature : -25 ~ +70 ( °C )
Size : 160 x 60 x 45 mm
Weight : 220g
Power Supply : Alkaline battery (3xAA 1.5V battery)
Silicone Jacket : Yes
