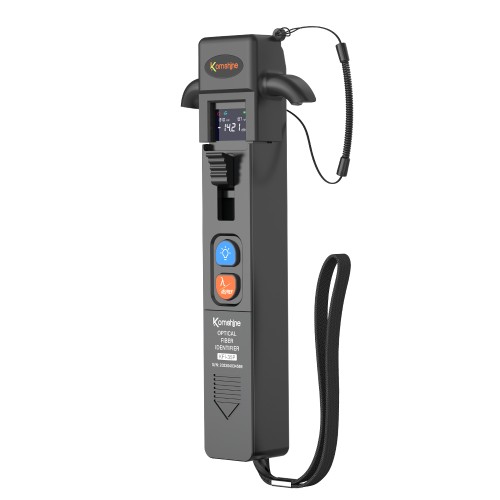

Komshine Optical Fiber Identifier KFI-35P
- Product Code: KFI-35P
- Availability: Pre-Order Please Call
Optical Fiber Identifier KFI-35P
Features
- All-metal fuselage,CNC highly processed
- 4 Kinds of chucks. Easy to operate and change; Suitable for 0.25/ 0.9/ 2.0/ 3.0mm fiber
- Recognizable 2kHz/ 1kHz/ 270Hz signal type with beeping sound
- Identify dominant signal direction
- Universal for SM & MM fiber
- Built-in LED light, convenient for line checking in the dark
- Configure OPM function, 2.5mm universal interface
- LED display
Specifications
Identified wavelength range : 800-1700nm
Fiber type : 0.9/ 0.25/ 2.0/ 3.0 (mm)
Frenquence : 270Hz/1kHz/2kHz
Accuracy : +10dB~-30dBm（Continuous Wave) / +10dB~-25dBm（Modulating Signal）
Sensitivity : +10~-50dBm
Battery : 9V x 1
Size : 195x30x27mm
Weight : 200g
OPM Function
Wavelength range : 800~1700nm
Measurement range : -70 ~ +6dBm / -50 ~ +26dBm
Standard wavelength : 850/980/1300/1310/1490/1550/1625nm
Optical connector : 2.5mm Universal interface+SC
Detector type : InGaAs
Display resolution : 0.01dB
Accuracy : ±0.2dB
