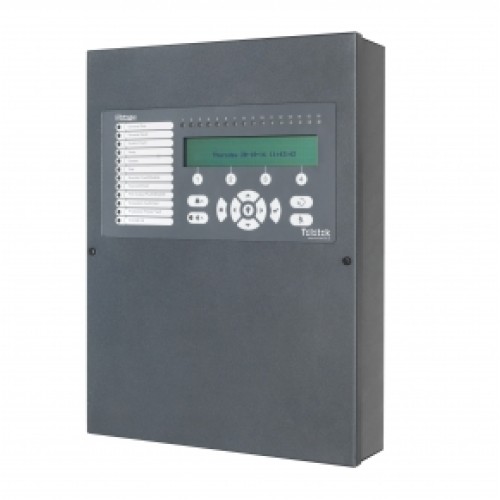

Teletek Addressable Fire Control Panel SIMPO

SIMPO is the perfect solution for smaller addressable installations. The addressable panel supports up to two loops with coverage of 48 zones. 250 devices operating on Teletek Electronics communication protocol could be connected to each loop. System status is visualized via LCD display and LED indication. Up to 64 Simpo panels can be connected in RS485 redundant network or Ethernet network. Direct programming with ProsTE software is available. The panel comes in a metal casing with a multilingual LCD display and front foil for easier customization.

EN 54-13 CERTIFIED

Features

• Loops: Up to 2 (TTE protocol)
• Devices per loop: 250
• Zones: 48
• Inputs: 3
• Outputs (monitored, relay type): 5
• Outputs (non monitored, programmable, relay type): 4, 15A@24VDC
• Memory LOG: 10 240 events
• Panels in RS485 redundant network (optional module): Up to 64
• Thermal printer: Optional
• Display: 4*40 symbols LCD
• Multi language support: Yes
• Programming:  ProsTE software
• Standard: EN54 – 2/4
• Transmitting events to monitoring software Observer via LAN channel (ModBUS protocol)
