R&M Fiber Optic Cable 24 core Single Mode, G657A1, green, Dca R855651
- Brand: R&M
- Product Code: R855651
- Availability: In Stock

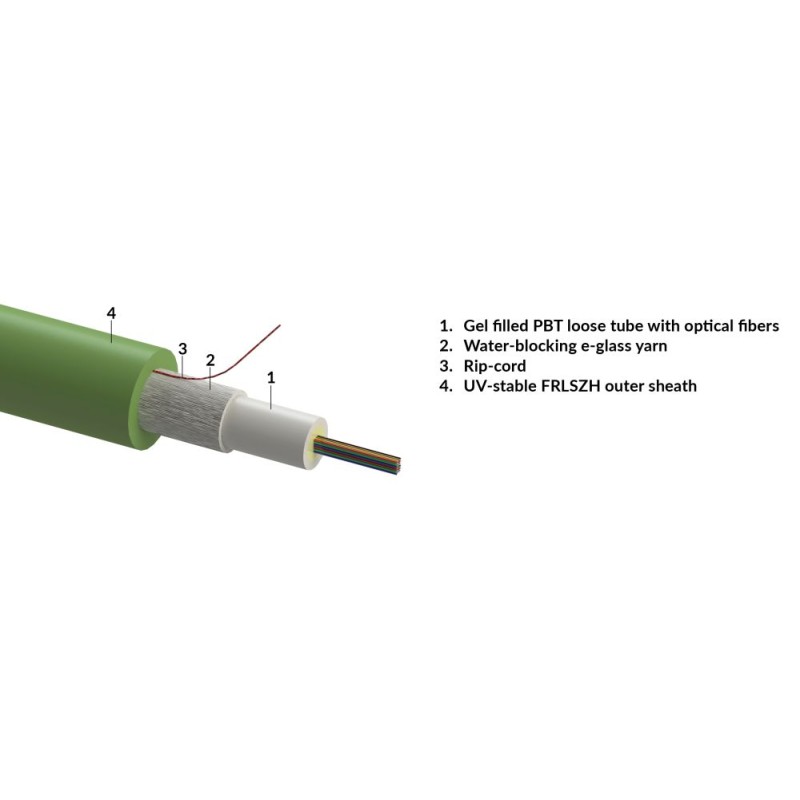

Central loose tube, single sheathed cable, iRP-increased rodent protected, universal-use, UV.FRLSZH sheath - green, Dca, 01 x 24 fibers OM4 G657A1
Technical Data
| Cable family code | UX1GF |
| Cable type | Central loose tube cable |
| Cable version | n.a. |
| Cable application | universal use |
| CPR classification | Dca-s2,d1,a1 |
| DoP number | D9031 |
| Fiber type | G.657.A1 |
| Fiber color coding | 1.-12.: red, green, blue, yellow, white, gray, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, gray, brown, violet, turquoise, natural, orange, pink(ring-marked) |
| Fiber count per tube | 24 |
| Loose tube count | 1 |
| Loose tube diameter | 3 mm |
| Armor | powerful rodent protected |
| Outer sheath thickness | 1.2 mm |
| Outer sheath material | UV stable FRLSZH |
| Outer sheath color | green |
| Cable outer diameter | 7.2 mm |
| Cable weight | 58.0 kg/km / 39 lbs/1000ft |
| DIN / VDE 0888 code | U-DQ(ZN)BH |
| CPR test method | EN 50575, EN 13501-6 |
| Standard put-up length on drum | 2100 m ± 5% |
| CPR classification | Dca |
Mechanical Data
| In-service tensile strength | 800 N |
| In-service tensile strength acceptance criteria | Δα ≤ 0,05 dB |
| In-service tensile strength test method | IEC 60794-1-21:E1 |
| Installation tensile strength | 2000 N |
| Installation tensile strength acceptance criteria | Δα ≤ 0,05 dB after test |
| Installation tensile strength test method | IEC 60794-1-21:E1 |
| Crush resistance long term | 1000 N/100mm |
| Long-term crush resistance acceptance criteria | Δα ≤ 0,05 dB prior release, no damage |
| Long-term crush resistance test method | IEC 60794-1-21:E3A |
| Short-term crush resistance | 2000 N/100mm |
| Short-term crush resistance acceptance criteria | Δα ≤ 0,05 dB after release, no damage |
| Short-term crush resistance test method | IEC 60794-1-21:E3A |
| Impact resistance | 10 Nm, 3 impacts, d=20 mm, R=300 mm |
| Impact resistance acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Impact resistance test method | IEC 60794-1-21:E4 |
| Torsion | L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria | no damage |
| Torsion test method | IEC 60794-1-21:E7 |
| Repeated bending | R=20 x cable diameter, 25 cycles |
| Repeated bending acceptance criteria | no damage |
| Repeated bending test method | IEC 60794-1-21:E6 |
| Cable bend | d=20 x cable diameter, 4 turns, 3 cycles |
| Cable bend acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Cable bend test method | IEC 60794-1-21:E11A |
| Minimum bend radius in service | 110 mm |
| Minimum bend radius during installation | 150 mm |
Environmental Characteristics
| Temperature cycling | -35 °C +70 °C / -31 °F +158 °F |
| Temperature cycling acceptance criteria | Δα ≤ 0,15 dB, reversible |
| Temperature cycling test method | IEC 60794-1-22:F1 |
| Reversible temperature cycling | -30 °C +70 °C / -22 °F +158 °F |
| Reversible temperature cycling test method | IEC 60794-1-22:F1 |
| Operation temperature | -30 °C to +70 °C / -22 °F to +158 °F |
| Thermal load | 0.81 MJ/m |
| Flammability vertical single cable | Pass |
| Flammability vertical single cable test method | IEC 60332-1-2 |
| Smoke density | Pass |
| Smoke density test method | EN 61034-1, EN 61034-2 |
| Halogen free, acid gases | Pass |
| Halogen free, acid gases test method | EN 60754-2 |
